OmniLink TM-T20II-i Intelligent Printer with COM

Epson's OmniLink TM-T20II-i combines our cost-effective TM-T20II receipt printer with a retail-hardened PC and built-in web server to enable mobile POS deployments, tablet-based POS systems, cloud-based services and control of peripherals. And it provides the application power and flexibility to run a broad range of POS configurations.

Find Accessories Support View Service Plans

Overview

Printer with retail-hardened PC
Supports printing from virtually any mobile device
Enables cloud services without need for legacy POS integration
Offers 2 USB ports and 1 serial port to connect up to 3 peripherals
Controls peripherals from any mobile device
Print option features reduce paper usage up to 30%
Fast print speed of up to 200mm/sec

Specifications

Print Other:

Printing Technology: Thermal line printingPrint Speed: Max. 200mm/sec (5.91 in/sec)

General:

Server Systems: HTTP server (Apache)Dimensions: 5.51" x 7.83" x 5.75" (140 x 199 x 146 mm) (W x D x H)Weight: 3.75lb (1.7 kg)Case Colour: Epson Dark Grey (EDG)

Print Fonts:

Column Capacity:

Standard:
- Paper width 80mm: 48/64
- Paper width 58mm: 35/46
42 Column Mode:
- Paper width 80mm: 42/60
- Paper width 58mm: 42/31

Character Size: 0.88 × 2.13 and 1.25 × 3 mm (W x H)Fonts: 9 x 17 and 12 x 24 dots/character (W x H)Character Set: 95 Alphanumeric, 18 set International, 128 × 43Graphic. Barcode: UPC-A, UPC-E, JAN13 (EAN13), JAN8 (EAN), CODE39, ITF, CODABAR (NW-7), CODE93, CODE128, GS1-128, GS1 DataBar. Two-dimensionalcode: PDF417, QRCode, MaxiCode, 2D GS1 DataBar, Composite SymbologyCharacters per Inch: 22.6 and 16.9 cpi

Media Handling:

Media Dimensions:

80mm: 3.13" ± 0.02" x 3.27" diameter (79.5 ± 0.5(W) x 83mm)
58mm: 2.26" ± 0.02" x 3.27" diameter (57.5 ± 0.5(W) x 83mm)

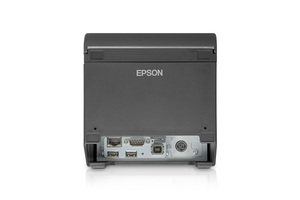

Connectivity:

Standard Connectivity:

Ethernet interface (100 Base-TX / 10 Base-T)
USB 2.0 Type A (2x)
USB 2.0 Type B
Serial x 1 (D-Sub 9 Pin)

Hardened PC:

Processor: ARM9 Processor (400MHz)System Memory: 256MBOperating System: Embedded Linux

POS Details:

Reliability:

MTBF 360,000 hours
MCBF 60,000,000 lines
Autocutter 1.5 million cuts

D.K.D.: 2 driversSoftware Included: WebPOS Configuration, ePOS-DeviceOptions:

Wireless LAN set (OT-WL01) component parts: Wireless LAN unit, extension cable, affixing tape, user's manual
Customer Display (DM-D110) (USB I/F)
Printer affixing tape (DF-10)
Optional external buzzer (OT-BZ20)
